High-precision custom tensile strength of fabric tester for textile materials, measuring tensile strength, elongation, and mechanical properties with 0.5% accuracy, compliant with ASTM D5034, ISO 13934, and GB/T 3923 standards.

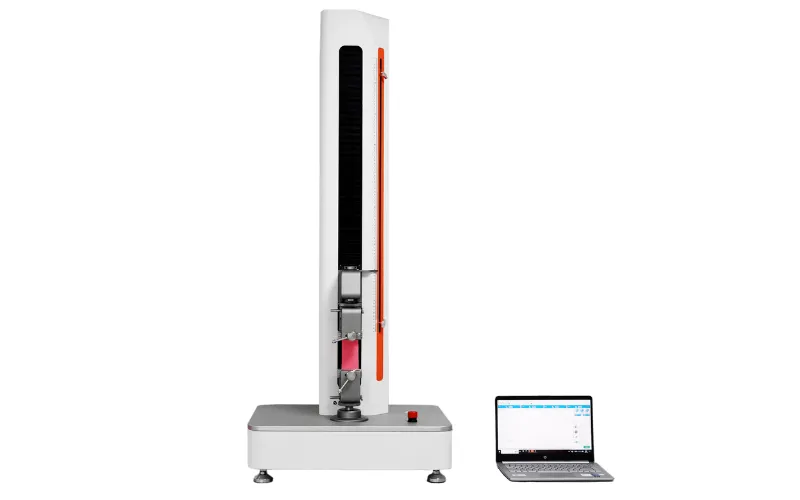

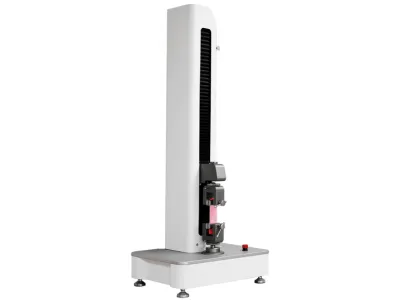

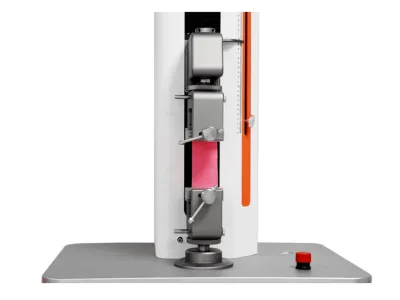

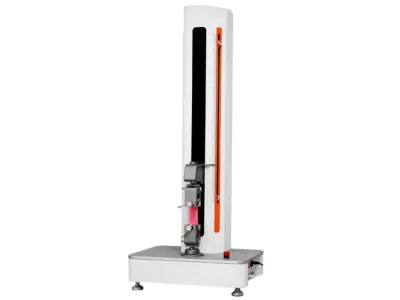

The Custom Tensile Strength of Fabric Tester uses advanced servo-driven technology to measure tensile strength, elongation, and other mechanical properties of textile materials with high precision. Fabric samples are clamped securely, and controlled force is applied to assess performance metrics like breaking strength and elasticity.
Ideal for textile manufacturing, quality control labs, and research facilities, it tests materials such as cotton, wool, linen, silk, non-wovens, and yarns, ensuring consistent quality and compliance with global standards.
Compliant with ASTM D5034, ISO 13934-1/2, GB/T 3923, and other standards, this tester delivers reliable results for industries requiring robust material testing.
The Custom Tensile Strength of Fabric Tester ensures precise measurement of tensile strength, elongation, tear resistance, and other mechanical properties for textile materials, including cotton, wool, silk, linen, and non-woven fabrics. Compliant with ASTM D5034, ISO 13934, and GB/T 3923, it meets global quality standards.
With 0.5% load accuracy, customizable clamping options, and advanced software for real-time data analysis, this tester enhances efficiency and minimizes errors. Its adjustable test speed (0.1-500 mm/min) suits diverse materials and testing needs.
Designed for manufacturers, labs, and researchers, it offers intuitive software and robust data management. Contact us for quotes or tailored solutions.
| Application | Description |
|---|---|
| Textile Fabrics | Measures tensile strength and elongation of cotton, wool, silk, linen, and other woven fabrics. |
| Nonwoven Fabrics | Tests nonwovens like diapers, medical masks, and sanitary pads for strength and elasticity. |
| Yarns and Ribbons | Evaluates breaking strength and elongation of yarns, ribbons, and similar materials. |
| Paper and Composites | Tests paper, composite paperboard, and other materials for tensile properties. |
| Seam and Peel Testing | Assesses seam slippage, seam strength, and peel strength for woven fabrics. |
| Specialized Materials | Tests rubber, leather, and other materials for mechanical properties. |
No software features available.
No standards compliance information available.
No customization options available.
No calibration and environment information available.
| Parameter | Value |
|---|---|
| Working Mode | CRE principle, microcomputer control |
| Load Capacity | 5-200 kg |
| Load Cell | High-precision, accuracy ≤0.5% |
| Motor | 400W servo motor |
| Driver | 400W servo driver |
| Screw | High-precision ball screw |
| Control Method | Touch screen panel, computer-connected |
| Test Speed | Adjustable 0.1-500 mm/min |
| Vertical Test Space | 900 mm (including clamp) |
| Load Resolution | 1/250,000 |
| Unit Switching | gf, kgf, N, kN, LBf, T |
| Dimensions | 520 mm (L) × 515 mm (W) × 1250 mm (H) |
| Net Weight | Approx. 70 kg |
| Power Supply | AC 220V 50 Hz |
| Optional Features | Pneumatic clamping, multilingual software, advanced data analysis |

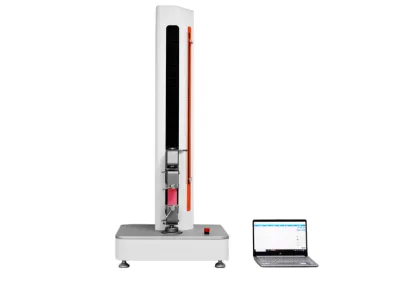

A leading textile manufacturer needed to ensure consistent tensile strength in woven fabrics for apparel production to meet ASTM D5034 standards. Manual testing methods were slow and inconsistent.
They implemented the Custom Tensile Strength of Fabric Tester, leveraging its 0.5% accuracy and customizable clamping to test cotton and polyester fabrics with precision.
The implementation included optimizing test conditions (0.1-500 mm/min speed, 900 mm test space) and using advanced software for real-time data analysis.
Results showed a 25% reduction in testing time, 15% improvement in measurement accuracy, and full compliance with industry standards, enhancing product reliability.
“This tester streamlined our quality control, delivering precise and repeatable results,” said the Quality Manager.
