High-precision mechanical contact thickness gauge for pharmaceutical and food packaging, measuring thickness of films, paper, nonwovens, and more with 0.1μm resolution.

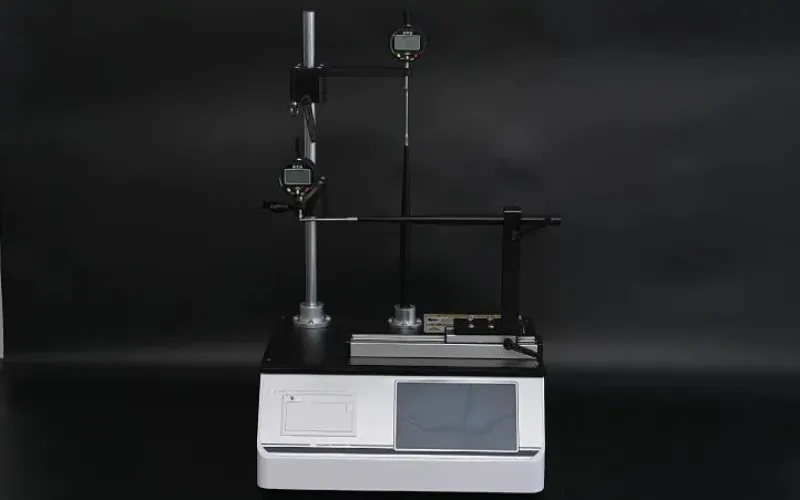

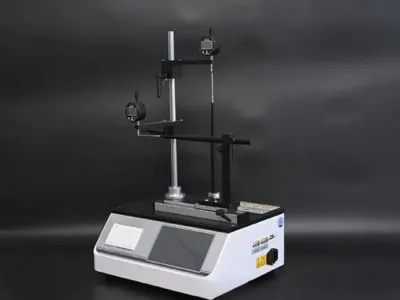

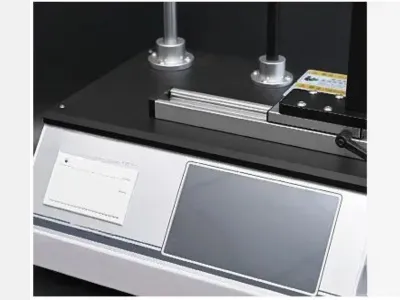

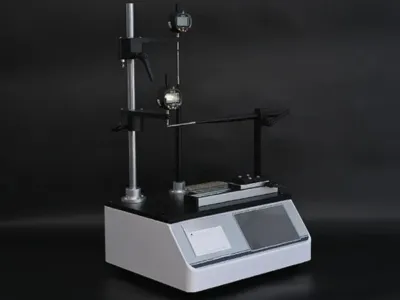

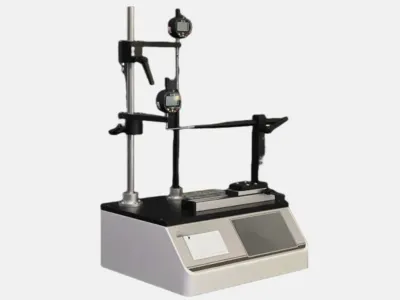

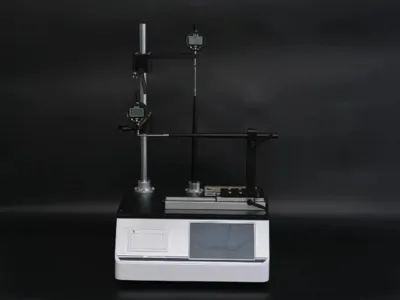

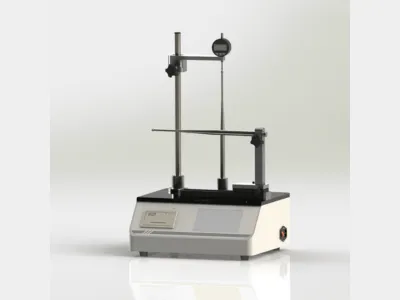

The Mechanical Contact Thickness Gauge uses a mechanical contact method to measure material thickness with high precision. A preconditioned sample is placed on a lower measurement surface, and an upper surface applies a standardized pressure (e.g., 17.5 kPa for films). A high-precision displacement sensor detects the distance between surfaces, yielding thickness with 0.1μm resolution.
Ideal for pharmaceutical and food packaging, it tests materials like plastic films, paper, nonwovens, and metal foils, ensuring consistent thickness for quality control and material optimization.
Compliant with ISO 4593, ASTM D6988, GB/T 6672, and other standards, this gauge delivers reliable results, trusted for GMP-compliant applications in the packaging industry.
The Mechanical Contact Thickness Gauge ensures precise thickness measurement for pharmaceutical and food packaging materials, including films, paper, nonwovens, and metal foils. Compliant with ISO 4593, ASTM D6988, and GB/T 6672, it meets global quality standards.
With 0.1μm resolution, automated measurement modes, and optional auto-feed systems, this gauge boosts efficiency while minimizing errors. Its customizable pressure and contact area suit diverse materials.
Designed for manufacturers and distributors, it offers GMP-compliant software and robust data management. Contact us for quotes or tailored solutions.
| Application | Description |
|---|---|
| Films and Sheets | Measures thickness of plastic films, sheets, and diaphragms used in packaging. |
| Paper and Paperboard | Tests paper, cardboard, and composite paperboard for consistent thickness. |
| Metal and Silicon Wafers | Evaluates thickness of silicon wafers, metal foils, and sheets. |
| Corrugated Cardboard | Measures thickness of corrugated cardboard for packaging applications. |
| Textile Materials | Tests woven fabrics, knitted fabrics, and coated textiles. |
| Nonwoven Fabrics | Measures nonwovens like diapers, sanitary pads, and medical masks. |
| Other Materials | Tests solid insulation materials, adhesive tapes, geotextiles, and rubber. |
No software features available.
No standards compliance information available.
No customization options available.
No calibration and environment information available.
| Parameter | Value |
|---|---|
| Test Range (Standard) | 0～2 mm |
| Test Range (Optional) | 0～6 mm / 0～12 mm |
| Resolution | 0.1 μm |
| Repeatability | 0.8 μm (standard) / 0.4 μm (high-precision) |
| Measurement Pressure (Films) | 17.5 ± 1 kPa, 50 mm² |
| Measurement Pressure (Paper) | 100 ± 1 kPa (standard) / 50 ± 1 kPa (optional), 200 mm² |
| Measurement Spacing | 0～1000 mm (adjustable) |
| Feed Speed | 1.5～80 mm/s (adjustable) |
| Dimensions | 370 mm (L) × 350 mm (W) × 410 mm (H) |
| Net Weight | 26 kg |
| Power Supply | AC 220 V 50 Hz |
| Optional Features | Auto-feed system, DataShield™, GMP-compliant software |
A leading European pharmaceutical packaging company needed to ensure consistent thickness in blister packaging films to meet GMP standards. Manual testing methods were time-consuming and prone to errors.
They implemented the Mechanical Contact Thickness Gauge, leveraging its 0.1μm resolution and automated multi-point testing to measure film thickness with precision.
The implementation included optimizing test conditions (17.5 kPa pressure, 50 mm² contact area) and using GMP-compliant software for data traceability.
Results showed a 20% reduction in thickness deviation, 30% faster quality checks, and full GMP compliance, saving costs and boosting reliability.
“This gauge transformed our quality control, ensuring consistent film thickness,” said Medipack GmbH’s Quality Manager.
