Reliable textile tensile strength tester for fabric and metal. 3000N capacity, 0.5 accuracy, computer or PLC control, perfect for textile packaging.

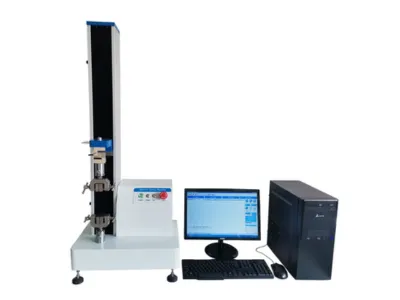

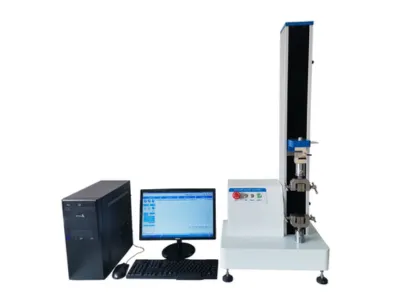

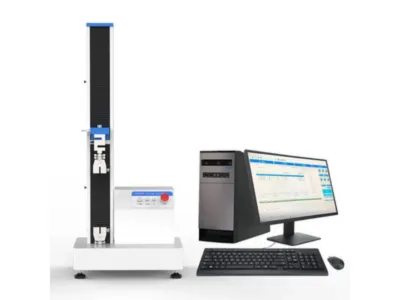

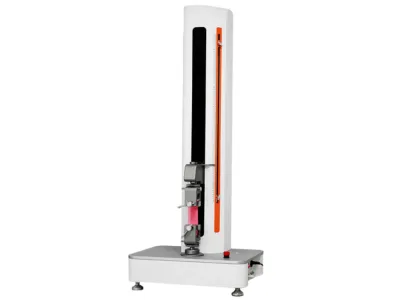

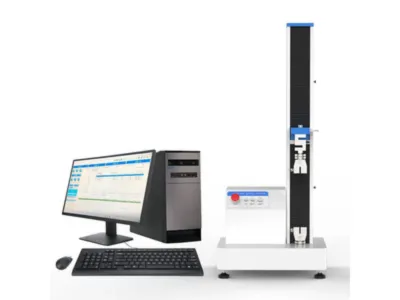

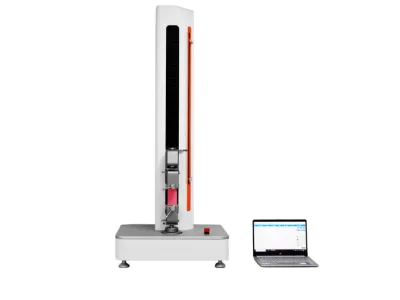

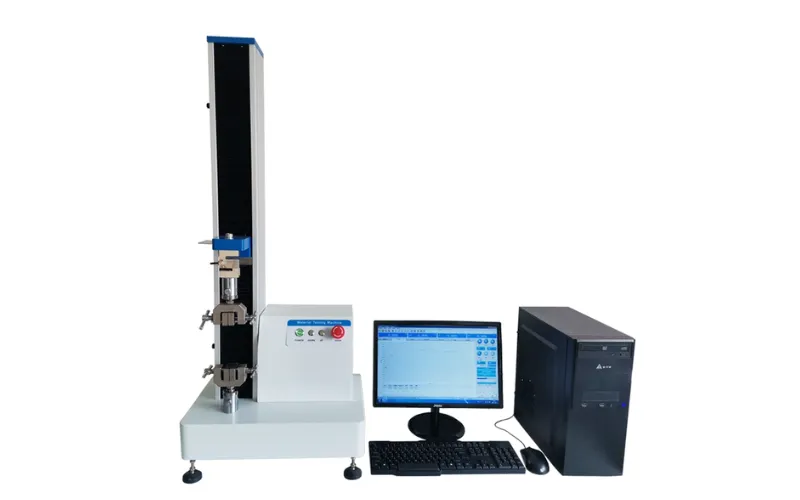

The Custom Tensile Strength of Fabric Tester employs advanced servo-driven technology and PLC control to measure tensile strength, elongation, and mechanical properties of textile and packaging materials with high precision. Securely clamped fabric samples undergo controlled force application to evaluate metrics like breaking strength and elasticity.
Ideal for textile manufacturing, quality control labs, and research facilities, it tests materials such as cotton, wool, linen, silk, non-wovens, yarns, and metal foils, ensuring consistent quality for textile and flexible packaging applications.
Compliant with ASTM D5034, ISO 13934-1/2, GB/T 3923, and other global standards, this tester delivers reliable results for industries requiring robust material testing.
The Custom Tensile Strength of Fabric Tester provides precise measurement of tensile strength, elongation, tear resistance, compression, bending, shear, and peel properties for textile and packaging materials, including cotton, wool, silk, linen, non-woven fabrics, and metal foils. Compliant with ASTM D5034, ISO 13934, and GB/T 3923, it meets stringent global quality standards.
Featuring a 3000N load capacity, 0.5% accuracy, and adjustable test speeds (0.1-500 mm/min), this tester ensures efficiency and minimal errors. Advanced software with computer or PLC control offers real-time data analysis, curve generation, and customizable clamping options for diverse testing needs.
Designed for manufacturers, labs, and researchers in the textile and packaging industries, it includes robust data management and intuitive operation. Packaged in a fumigation wooden box, it ensures safe delivery. Contact us for quotes or tailored solutions.
| Application | Description |
|---|---|
| Textile Fabrics | Measures tensile strength, elongation, and mechanical properties of cotton, wool, silk, linen, and other woven fabrics. |
| Nonwoven Fabrics | Tests nonwovens like diapers, medical masks, and sanitary pads for strength, elasticity, and durability. |
| Yarns and Ribbons | Evaluates breaking strength and elongation of yarns, ribbons, and similar textile materials. |
| Paper and Composites | Tests paper, composite paperboard, and other materials for tensile and compression properties. |
| Metal Foils | Assesses tensile strength and mechanical properties of metal foils used in flexible packaging. |
| Seam and Peel Testing | Evaluates seam slippage, seam strength, and peel strength for woven fabrics and packaging materials. |
| Specialized Materials | Tests rubber, leather, and other materials for tensile, shear, and tear properties. |
No software features available.
No standards compliance information available.
No customization options available.
No calibration and environment information available.
| Parameter | Value |
|---|---|
| Working Mode | CRE principle, microcomputer or PLC control |
| Load Capacity | 5-3000 kg |
| Load Cell | High-precision, accuracy ≤0.5%, force measurement 0.2% F.S. |
| Motor | 400W servo motor |
| Driver | 400W servo driver |
| Screw | High-precision ball screw |
| Control Method | Touch screen panel, computer or PLC-connected |
| Test Speed | Adjustable 0.1-500 mm/min |
| Vertical Test Space | 1000 mm (including clamp) |
| Load Resolution | 1/10000 |
| Unit Switching | gf, kgf, N, kN, LBf, T |
| Dimensions | 520 mm (L) × 515 mm (W) × 1250 mm (H) |
| Net Weight | Approx. 70-100 kg |
| Power Supply | AC 220V 50 Hz |
| Packaging | Fumigation wooden box with operation manual and video |
| Production Capacity | 1000 units per year |
| Optional Features | Pneumatic clamping, multilingual software, advanced data analysis |
A leading textile packaging manufacturer required consistent tensile strength testing for woven fabrics and metal foils used in apparel and industrial packaging to meet ASTM D5034 standards. Manual methods were time-consuming and inconsistent.
They adopted the Custom Tensile Strength of Fabric Tester, utilizing its 3000N capacity, 0.5% accuracy, and customizable clamping to test cotton, polyester, and metal foil samples with precision.
Optimized test conditions (0.1-500 mm/min speed, 1000mm test space) and PLC-controlled software enabled real-time data analysis, reducing testing time by 30% and improving accuracy by 20%.
The tester ensured full compliance with industry standards, enhancing product reliability and market competitiveness.
“This tester transformed our quality control, delivering precise and repeatable results,” said the Quality Manager.
